Ore dressing used crusher

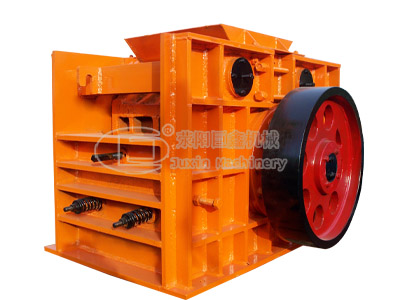

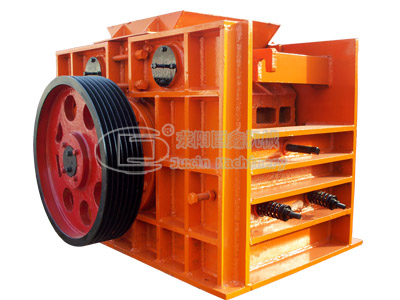

Ore dressing used crusher(Dual-chamber Rotary Crusher) is a new type crusher that can replace fine jaw crusher, cone crusher. The Crusher has bright prospect in mining mineral processing industry.The products are discharged continuously from the discharge opening. They are widely used in metallic ore, non-metallic ore,building chemical raw materials, cement clinker ,refractory with the compression strength no more than 60 Mpa of all kinds rock ore materials in medium, fine, extra-fine crushing coarse grinding task. This machine one can replace many machine,simplifying processing ,saving investment.



Ore dressing used crusher (SHP series Dual-chamber rotary crusher)’work part is a eccentric rotation round roller. The round roller and ratchet concave side crushing board which is fixed equipped on the two sides symmetrically are coupled. They formed two high efficiency crushing chambers. There is high inclination-angle non-blocking discharge opening. The materials enter into the crushing chamber from the materials inlet at the same time. Under the force of the eccentric rotation round roller’lateral pendulum movement, the materials are compressed ,grinded and separation in turn and they are crushed under the combined actions. The crushing task is taken alternately in the two crushing chambers. Every crushing chamber is effective and take the products out rapidly.



1 Small vibration,large handling capacity,effective fine crushing.

2 Easy maintenance,low cost,low consumption of the crushing organization.

3Electricity consumption is 0.3-0.5kwh/t ,reducing above 50% compared with the traditional crusher.

4Realize“more crushing and less grinding”,the materials are crushed by laminating crushing.
