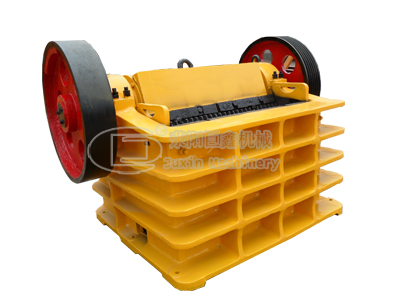

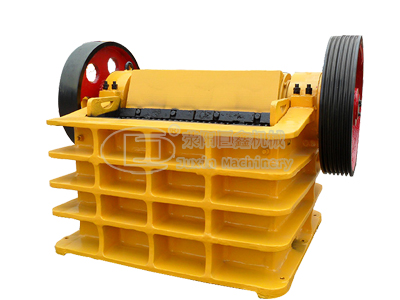

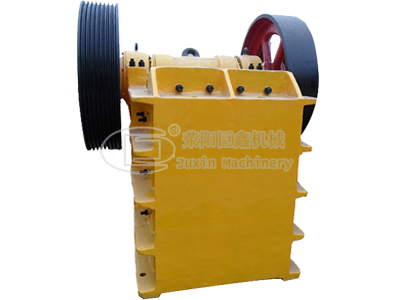

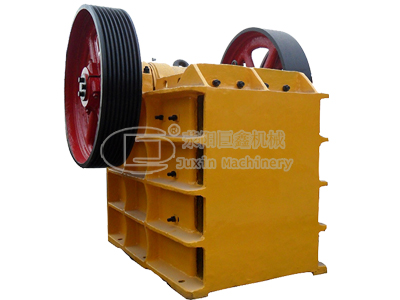

Jaw Crusher

Jaw Crusher is also called Broken Jaw. The Characteristics of this series of crushers are simple structure, reliable working condition, easy maintenance,low cost of the producing and maintaining. Jaw Crusher machine is widely used in mining , metallurgy, building material and chemical industry. The largest compression resistance of the material to be crushed is 300Mpa.

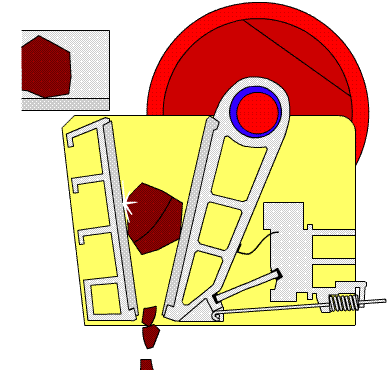

Operating  principle

The motor transmits power through belts, drives the moving Jaw do periodic motion to the fixed jaw surround the eccentric shaft. The angle between toggle plate and moving jaw increases when the moving jaw moves up. So the moving jaw closes to the fixed jaw. The materials will be crushed in this process. The angle of Jaw Crusher between toggle plate and moving jaw decreases when the moving jaw moves down, the moving jaw of jaw crusher moves away from fixed jaw by the pulling of rod and spring, the products after crushing will be discharged from the oulet of stone jaw crusher.



1 Deep crushing chamber and no dead zone.

2 High crushing ratio ,uniform products sizes.

3 Gasket type nesting population adjusting device, reliable and convenient, large adjustment range.

4 Lubrication system is safe and reliable.

5 Simple structure, reliable operation, low operating cost, convenient, large adjustment range.

6 The equipment save energy 15%--30%.
