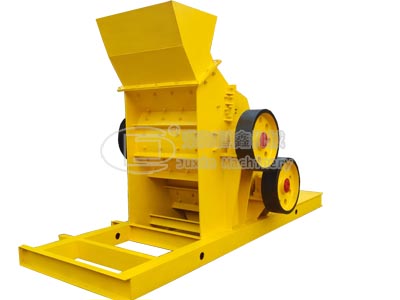

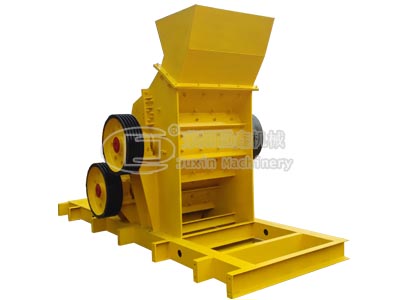

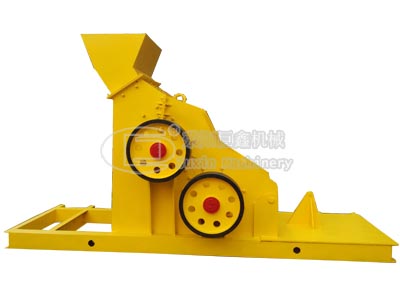

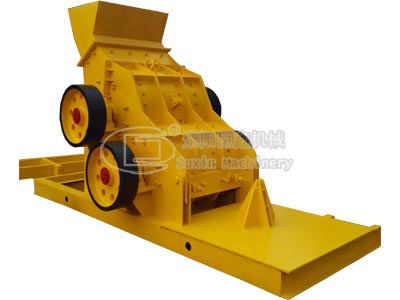

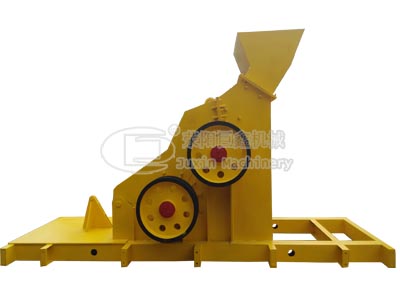

Double Rotor Ultra-fine Crusher
- Type: 2PCX Double Rotor Ultra-fine Crusher
- Max Feed Size: 200mm
- Capacity: 15-120t/h
- Processing material: calcite ,limestone , cinder brick ,slag ,shale, gangue ,construction waste etc
We're here to help:
Easy ways to get the answers you need.
(※ Click this button to inquiry).jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
■ Overview
Function
The Double Rotor Ultra-fine Crusher developed by Xingyang Ju Xin machinery Co.,Ltd. is widely used for crushing calcite,limestone,the cinder brick,slag,shale,gangue,construction waste and so on. This solved the problems of using gangue and cinder as brick adding material, in fuel and using waste rock, shale to produce standard brick, hollow brick material humidity for crushing. The double rotor ultra-fine crusher equal to two hammer crushers and this two parts combine together reasonably, Two sets of rotors used in tandem model.

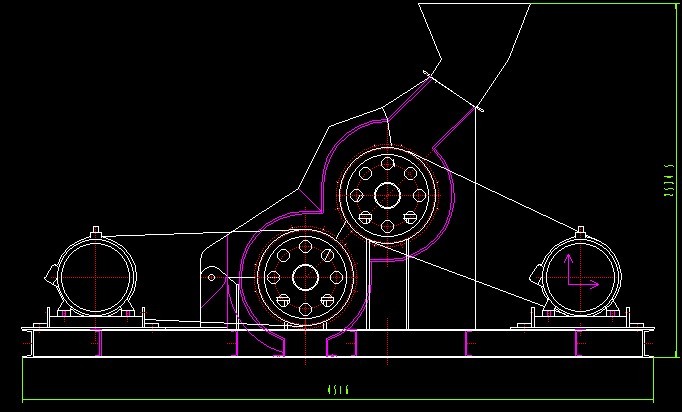

Operating principle
When double rotor ultra-fine crusher working, the double motors drive the two sets of rotors in tandem to do a high-speed rotating at the same time. The material inside the plane cavity are crushed by the higher rotor and re-crushed immediately by the lower rotor with rapid rotation. The material inside the plane cavity have mutual rapid collision and mutual shattered to get hammer powder. The effect of the powder formed cinders particles with the discharge size less than 3mm. The particles can meet the tile factories'need for dieselling to make bricks.
Features
1 The series of crushers have two consecutive broken through double rotors,without screen section equipment,all kinds of wet residue can be crushed,that is to say,fished from the water of material also can be crushed at any time.
2 High alloy hammer,the hammerhead and hammer handle combining toghter to use,only to change the hammerhead,not change the hammer handle.
2 High alloy hammer,the hammerhead and hammer handle combining toghter to use,only to change the hammerhead,not change the hammer handle.
3 The unique shift adjustable gap technology,there is no need to repair the weared hammerhead,moving the location for repeatedly use. A hammer is equal to three hammers in using.
4 Bi-directional rotation through continuous operation mode of two-way divisions. Convenient for hammerhead and broken teeth board to wear and reduce frequency of stopping machine,replacement of wearing parts.
5 The uniform discharge size,high ratio of crushing,high yield ,low energy consumption ,crush material more than 20 ton per hour.
6 Shorten the time that the material stranded in the crushing chamber ,improve the life span of the wearing parts.
■ CASE
-
150-180t/h Stone making Production Line
According the requirement of customer, Yunnan 150-180t/h Stone making Production Line has some differences with normal Stone making Production Line. Due to the Capacity, We choose the models of all equipment for customers carefully..jpg)
-
60-100t/h Dolomite Stone making Production Line
60-100t/h Dolomite Stone making Production Line mainly consists of ZSW3895 Vibrating Feeder, PE600*900 Jaw Crusher, PF1214 Impact Crusher, 2YK1548 Vibrating Screen; Some Belt Conveyors. And every machine and every model is provided by Juxin Machinery based on the detailed requiement of customer..jpg)
-
40-70t/h Quartz Sand Making Production Line
According the detailed requirement of Shanxi customers, we provide the 40-70t/h Quartz Sand Making Production Line, and it mainly consists of PE400*600 Jaw Crusher, PC1010 Hammer Crusher, 3 sets of 2PG610*400 Double Roll Crusher, 3YK1860 Vibrating Screen; Some Belt Conveyors etc..jpg)
